Technical Specifications

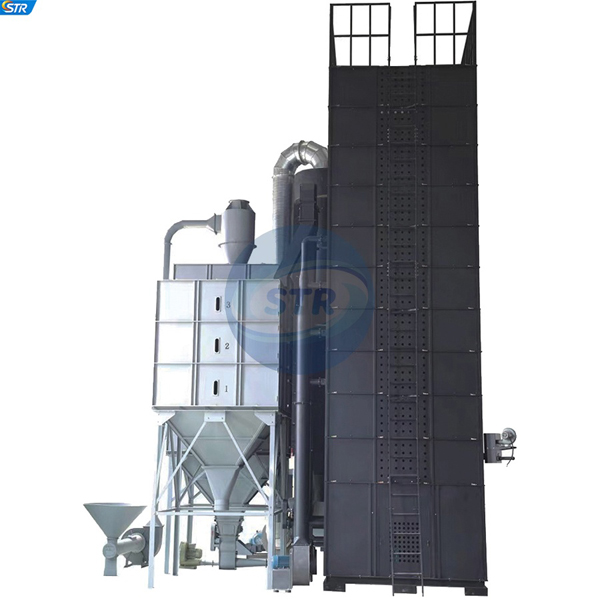

Complete technical parameters for 5L-150 Paddy Husk Hot Air Furnace
| Parameter | Specification |
|---|---|
| Model | 5L-150 Paddy Husk Hot Air Furnace |
| Combustion Method | Suspension Combustion |
| Fuel | Rice Husks, Wood Chips, etc. (renewable fuels) |
| Dimensions (L×W×H) | 5500 × 6100 × 8520 mm |
| Heat Output | 1.5 Million Kcal/hour |
| Husk Consumption | 220~550 kg/h (depending on moisture content) |
| Ash Discharge | 40~95 kg/h |
| Total Power | 25.1 KW |
| Number of Dryers Supported | 5HHL-32 × 6 units (or equivalent capacity) |
| Hot Air Temperature Range | 60-200°C (adjustable based on drying requirements) |
| Thermal Efficiency | ≥80% |
| Emission Standards | Complies with national environmental protection standards |
| Operating Pressure | Negative pressure operation for safety |
| Control System | PLC automatic control with touch screen interface |
Product Advantages
Key benefits of 5L-150 Paddy Husk Hot Air Furnace
Energy Efficiency with Renewable Sources
Our hot air furnaces use renewable energy sources like rice husk, making them environmentally friendly and sustainable. 1KG rice husk generates 3200Kcal, providing efficient heat generation.
Environmental Protection
Our furnaces have low smoke emissions and minimal exhaust gas, complying with national environmental standards. Suspension combustion technology ensures complete combustion with minimal pollution.
High Safety Operation
Our hot air furnaces can be operated without annual inspections or the need for a certified license, unlike boilers which require licensed operators. Negative pressure operation ensures safety.
Economic Efficiency
1KG biomass generates 4000Kcal, 1KG grain shell generates 3200Kcal, 1KG diesel generates 8670Kcal. Price of biomass is around 0.1 USD/KG, grain shell is around 0.05 USD/KG while 1 USD/KG for diesel.
Cost Comparison Analysis
1Kg biomass with 0.1 USD can supply the same power generated by 0.46KG diesel with cost of USD 0.5; 1KG biomass with 0.05 USD can supply the same power generated by 0.37KG diesel with cost of 0.4 USD.
Waste Utilization
Effectively utilizes agricultural waste (rice husk) that would otherwise be discarded, turning waste into valuable energy resource for grain drying operations.
Product Features
Specialized features for efficient and reliable hot air generation
High Thermal Energy Output
The thermal energy generated is sufficient to supply 6 units of 32T dryers under normal conditions. 1.5 million Kcal/hour heat output meets demanding commercial drying requirements.
Fully Automated Operation
Automatic feeding, temperature control, combustion and ash cleaning. Reduces operator physical effort and ensures overall drying precision with consistent heat supply.
Automatic Feeding System
The feeding rate can be controlled based on the dryer's temperature requirements. Frequency conversion control allows precise adjustment of fuel input for optimal efficiency.
Precise Temperature Control
Automatic temperature regulation maintains consistent hot air output. PID control algorithms ensure stable temperatures for uniform grain drying results.
Suspension Combustion Technology
Advanced suspension combustion ensures complete fuel burning with high thermal efficiency. Minimizes unburned carbon and maximizes heat transfer.
Open Structure Safety Design
Operates under negative pressure, ensuring high safety. Open structure prevents pressure buildup and allows safe observation of combustion process.
Low Overall Energy Consumption
Total power consumption is only 25.1KW despite 1.5 million Kcal output. Efficient blowers and optimized airflow minimize electrical requirements.
Indirect Heat Exchange
Heat exchanger uses indirect method, providing clean hot air that does not damage the grain's natural aroma and taste. Prevents contamination of drying air with combustion gases.
Easy Maintenance Design
Access panels for easy inspection and cleaning. Modular design allows quick replacement of components. Ash removal system prevents buildup and maintains efficiency.
Applications
Designed for various grain drying and heating applications
Grain Drying Support
Primarily used for supporting grain drying equipment, providing stable hot air for grain drying applications. Compatible with various dryer types and sizes.
Industrial Heating
Suitable for industrial heating applications requiring clean hot air. Can be used for drying processes in various manufacturing industries.
Agricultural Applications
Ideal for agricultural heating needs including greenhouse heating, livestock barn heating, and crop processing facilities.
Storage Facility Heating
Provides heat for grain storage facilities to prevent moisture buildup and spoilage. Maintains optimal storage conditions for preserved grain quality.
Compatible Dryer Systems:
Fuel Options
Wide range of renewable fuel compatibility
Fuel Selection Tip: Rice husk offers the best economics for rice mills, reducing fuel costs by 80-90% compared to diesel. For non-rice processing facilities, mixed biomass or wood chips provide excellent cost-effectiveness.
Control System
Advanced automation for efficient and safe operation
Touch Screen Interface
User-friendly color touch screen with intuitive controls. Real-time monitoring of temperature, pressure, fuel consumption, and system status.
PLC Automatic Control
Programmable Logic Controller manages all furnace operations. Automated sequencing for startup, operation, and shutdown procedures.
Temperature Regulation
PID temperature control maintains precise hot air output. Automatic adjustment based on dryer requirements and ambient conditions.
Automatic Feeding Control
Variable frequency drive controls feeder speed. Automatic adjustment based on temperature feedback and combustion efficiency.
Safety Monitoring
Multiple safety sensors monitor temperature, pressure, and combustion conditions. Automatic shutdown in case of abnormalities.
Alarm System
Visual and audible alarms for abnormal conditions. Early warning system prevents equipment damage and ensures safe operation.
Cost-Benefit Analysis
Economic advantages of rice husk furnace compared to conventional fuels
| Fuel Type | Calorific Value | Fuel Cost (USD/kg) | Cost per Million Kcal | Savings vs Diesel |
|---|---|---|---|---|
| Rice Husk | 3200 Kcal/kg | $0.05 | $15.63 | 84% |
| Wood Chips | 3800 Kcal/kg | $0.10 | $26.32 | 73% |
| Biomass Pellets | 4200 Kcal/kg | $0.12 | $28.57 | 71% |
| Coal | 5500 Kcal/kg | $0.15 | $27.27 | 72% |
| Natural Gas | 8500 Kcal/m³ | $0.40/m³ | $47.06 | 52% |
| Diesel | 8670 Kcal/kg | $1.00 | $115.34 | 0% (基准) |
Annual Operating Cost Example:
*Based on 1.5 million Kcal/hour output, rice husk at $0.05/kg, diesel at $1.00/kg. Electrical costs (~$2,500/year) included in operating costs.
Eco-Friendly Heat Solution
The 5L-150 Paddy Husk Hot Air Furnace offers sustainable, cost-effective heating for grain drying operations. Reduce your fuel costs by 80-90% while utilizing agricultural waste as renewable energy.
